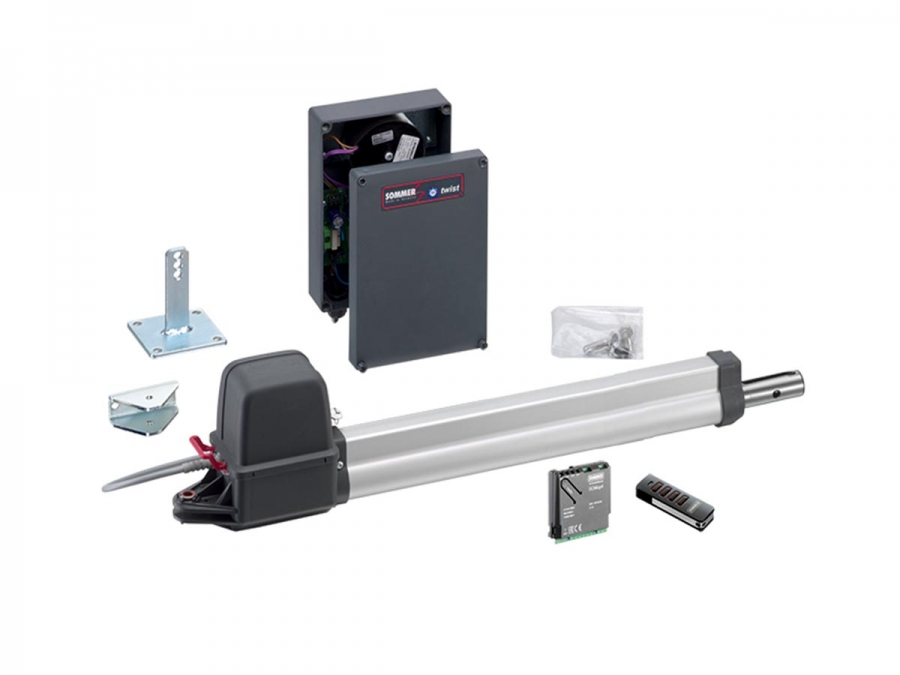

Motor SOMMER TWIST 200EL for radial portal doors

Motor TWIST 200EL for radial portal doors is among the leaders of the German manufacturer SOMMER. With piston stroke – 550 mm, this worm drive drives portal doors to 300 kg and 2.5 m length, mounted even on very wide columns or pylons, without the need to remove them beforehand. The opening angle is 130°, with direction left or right. In the event of a mains power failure, the radial motors are mechanically unlocked for manual door movement. After closing, they are locked again and it remains locked. When power is restored, it is still locked, and the property – in safety. The partial opening function allows the passage of a pedestrian or cyclist, without the need to completely open the door and without wasting time. The control is remotely, but there are options for chips, magnetic cards, button or mobile app – according to the needs of the site. The control panel can control a signal lamp, traffic light, external antenna, fingerprint reader and other access control and security systems. The SOMMER TWIST 200EL motor supports automatic closing. The time until the start of the closing is set as desired. That way you are always safe, that the door is locked after exiting. The operator can be mounted as low as possible – on the lower profile of the door, thanks to the position of the power cable. As a result, the transmission power is greater, and the appearance – preserved. One of the key features of the SOMMER TWIST 200EL is, that it can be combined with another engine, if one wing is lighter, and the other – heavier. This is possible with models TWIST 350 And TWIST XL.
